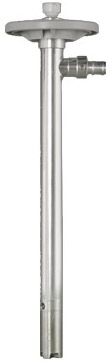

Stainless Steel Pump Tube Sets from Standard Pump
STANDARD’s Stainless steel pump tube is engineered for transferring flammable and combustible liquids. Robust Stainless Steel 316 offers excellent strength and durability.
STANDARD’s Stainless steel pump tube is engineered for transferring flammable and combustible liquids. Robust Stainless Steel 316 offers excellent strength and durability.
|
Applications:
|
|
|
> Alcohol
|
> Gasoline
|
|
> Aqueous Ammonia
|
> Isopropyl Ether
|
|
> Solvents
|
> Petroleum Products
|
|
Technical Data :
|
|
|
Design:
|
Seal-less / Centrifugal
|
|
Viscosity:
|
1500 Cps/mPas (280, ENC, 400) |
|
Wetted Materials:
|
Stainless 316
Carbon Teflon |
|
Discharge Options:
|
1″ (25mm) barb
3/4″ (22mm) barb |
|
Maximum Temp:
|
190°F/90°C
|
|
Maximum
Specific Gravity: |
1.8 |
|
Model
|
Tube Assembly
|
Length
|
Shaft
|
Impeller
|
||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
 |
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
Warning: When pumping flammable or combustible liquids pump tube must be
used in conjunction with an explosion proof motor. |
