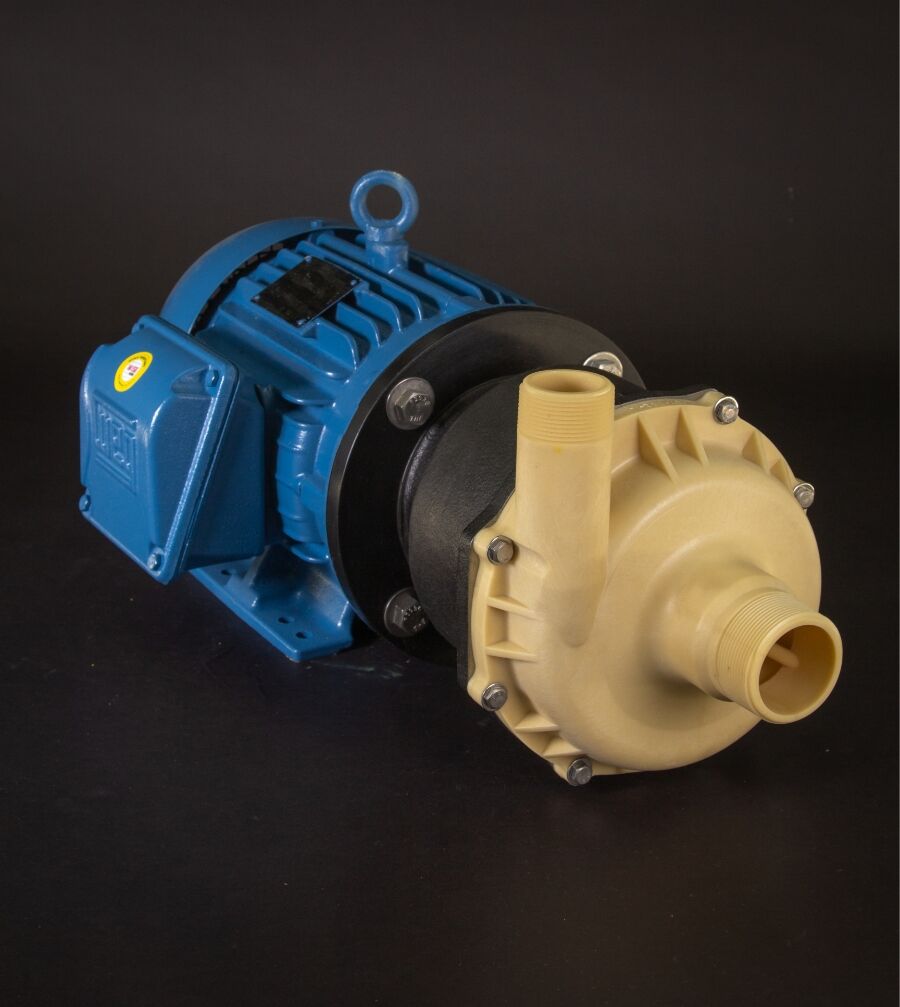

TE-8K-MD Magnetically Coupled Pump

March Pump’s industrial TE-8K-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems.  It is capable of generating a maximum flow of 120 gallons per minute at 30 feet, and its maximum head is 95 Feet (41PSI).

Category:
Unit 60Hz
System US Metric
Max Flow 120 GPM 454 LPM
Max Head 95 FT 29 M
Power 3 HP 2.2 KW
50Hz
US Metric
105 GPM 400 LPM
65 FT 20 M
3 HP 2.2 KW
Electrical/Air: 1Ph 208/230V 60Hz or 3Ph 230/460V 60Hz & 380V 50Hz, or 3Ph 575V 60Hz
Inlet: 2″MPT
Outlet: 1-1/2″MPT
  • Wet End: Glass filled Kynar (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing)
  • Additional Motor Options: Available in 3HP, 5HP, 5HP Explosion Proof, 3HP 575V, 5HP 575V, or Washdown
  • Max Internal Pressure: 75 PSI / 5.1 bar
  • Max Liquid Temperature: 200 °F / 93 °C
  • Note: Product image may be different than actual product received.

Pump Curves & General Installation Sheets

March Safety Instructions and Preventive Maintenance Guide
March Pump General Installation Guide
March TE-8C-MD and TE-8K-MD Pump Manual
March TE-8C-MD, TE-8K-MD Curve 50Hz
March TE-8C-MD, TE-8K-MD Curve 60Hz



Part Numbers

P/N Pump Description Modified With
0157-0008-0200 TE-8K-MD 3 Phase 3HP with Metal Motor Bracket Standard
0157-0008-0800 TE-8K-MD 3 Phase 5HP with Metal Motor Bracket Standard
0157-0008-0400 TE-8K-MD 3 Phase 5 HP Explosion Proof with Metal Motor Bracket Standard
0157-0102-0100 TE-8K-MD 1 Phase 3 HP with Metal Motor Bracket Standard
0157-0137-0200 TE-8K-MD 3 Phase 575V 3HP with Metal Motor Bracket Standard
0157-0126-0100 TE-8K-MD 3 Phase 3HP with Plastic Motor Bracket Standard
0157-0127-0100 TE-8K-MD 3 Phase 5HP with Plastic Motor Bracket Standard
0157-0130-0100 TE-8K-MD 3 Phase 5HP Explosion Proof with Plastic Motor Bracket Standard
The below are modified TE-8K-MD’s
0157-0008-0212 TE-8K-MD 3 Phase 3HP with Metal Motor Bracket Teflon O-Ring
0157-0008-0812 TE-8K-MD 3 Phase 5HP with Metal Motor Bracket Teflon O-Ring
0157-0008-0412 TE-8K-MD 3 Phase 5 HP Explosion Proof with Metal Motor Bracket Teflon O-Ring
0157-0008-0230 TE-8K-MD 3 Phase 3HP with Metal Motor Bracket Carbon Bushing
0157-0008-0830 TE-8K-MD 3 Phase 5HP with Metal Motor Bracket Carbon Bushing
0157-0008-0430 TE-8K-MD 3 Phase 5 HP Explosion Proof with Metal Motor Bracket Carbon Bushing
0157-0008-0232 TE-8K-MD 3 Phase 3HP with Metal Motor Bracket Mica Teflon Bushing
0157-0008-0832 TE-8K-MD 3 Phase 5HP with Metal Motor Bracket Mica Teflon Bushing
0157-0008-0432 TE-8K-MD 3 Phase 5 HP Explosion Proof with Metal Motor Bracket Mica Teflon Bushing



Parts Breakdown

Item Part Number Qty Description
0157-0008-0200 1 TE-8K-MD, 3 Phase, Complete Standard Pump
1 0157-0014-1000 8 1/4″-20 x 1″ Long Screw (Stainless)
2 0157-0023-1000 8 1/4″ ID x 5/8″ OD Washer (Stainless)
3 0157-0052-1000 1 Pump Housing with 2” MPT Inlet & 1-1/2″ MPT Outlet (Glass Filled Kynar)
4 0157-0011-1000 1 0.157” CS x 7.244” ID “O” Ring (Viton)
5 0157-0001-1000 1 Front Thrust Washer (Ceramic)
6 0157-0002-1000 1 Shaft (Ceramic)
7 0157-0050-0500 1 Impeller with Carbon Bushing (Glass Filled Kynar)
8 0157-0009-1000 1 Rear Thrust Washer (Ceramic)
9 0157-0053-1000 1 Rear Housing (Glass Filled Kynar)
10 0157-0005-0100 1 Drive Magnet
11 0157-0008-0010 1 Motor Bracket (Metal)
12 0160-0031-1000 4 1/2″-13 x 1″ Long Screw (Stainless)
13 0160-0032-1000 4 1/2″ ID x 1-1/4″ OD Washer (Stainless)
13 0157-0012-1000 1 Motor, TEFC, 3 Phase, 230/460V, 50/60 Hz, 3 HP
WEK 0157-0086-0100 1 Wet End Kit (Items: 1, 2, 3, 4, 5, 6, 7, 8, 9)
PLM 0157-0096-0100 1 Pump Less Motor (Items: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13)

Options

Item Part Number Qty Description
4 0157-0032-1000 1 1/8” CS x 7-1/2” ID “O” Ring (Teflon Encapsulated Viton)
4 0157-0058-1000 1 0.157” CS x 7.244” ID “O” Ring (EPDM)
5 0157-0043-1000 1 Front Thrust Washer (Hastelloy C)
6 0157-0045-1000 1 Shaft (Hastelloy C)
6 0157-0099-1000 1 Shaft, 3 Flats (Ceramic)
6 0157-0150-1000 1 Shaft (316 Stainless)
7 0157-0050-0200 1 Impeller with Ryton Bushing (Glass Filled Kynar)
7 0157-0050-0700 1 Impeller with Mica Teflon Bushings (Glass Filled Kynar)
8 0157-0047-1000 1 Rear Thrust Washer (Hastelloy C)
11 0157-0100-1000 1 Motor Bracket (Plastic)
14 0157-0065-1000 1 Motor, TEFC, 3 Phase, 230/460V, 50/60 Hz, 5 HP
0157-0042-1000 1 Motor, Explosion Proof, 3 Phase (Contact March For Additional Specs)
1 Motor, Washdown, 3 Phase (Contact March for Additional Specs)
0750-1011-1000 1 Stainless Steel Tag w/Customer’s Desired Information (Not Shown)

Dimensional Drawings

Dimensional Drawing TE-8K-MD 3Ph 5HP

Dimensional Drawing TE-8K-MD 3Ph 3HP

Motor Information

0157-0012-1000 Motor
Conduit Box, TEFC, IP55, VFD Capable
60Hz: 3Ph 3 HP / 2.2 kW, 230/460V, 7.26/3.63 AMPS, 3450 RPM (Usable at 208V)
50Hz: 3Ph 3 HP / 2.2 kW, 380V, 4.3 AMPS, 2850 RPM (Usable at 190/220V)

0157-0065-1000 Motor
Conduit Box, TEFC, IP55, VFD Capable
60Hz: 3Ph 5 HP / 3.7 kW, 230/460V, 11.8/5.9 AMPS, 3450 RPM (Usable at 208V)
50Hz: 3Ph 5 HP / 3.7 kW, 380V, 7.14 AMPS, 2850 RPM (Usable at 190/220V)

Perfect for Applications Including

Applications for the TE-8K-MD Magnetic Drive Pump include chemical recirculation, chemical transfer, deionized water systems, scrubber systems, detergent mixers, computer cooling, waste treatment plants, and plating operations.

Great for Chemicals Including

The TE-8K-MD has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Hydrochloric Acid (Muriatic), Hydrofluoric Acid, Hydrogen Peroxide, Nitric Acid, Phosphoric Acid, Potassium Chloride, Sodium Chloride, Sodium Hypochlorite, Sulfuric Acid, Fresh Water, Salt Water, DI Water, and many more chemicals.  The TE-8K-MD may have been modified to handle these chemicals.  This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water.  Please contact March Pump to review your application before using the TE-8K-MD.  Chemical Resistance Chart

Summary Paragraph

March Pump’s industrial TE-8K-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems.  It is capable of generating a maximum flow of 120 gallons per minute at 30 feet, and its maximum head is 95 Feet (41PSI). The standard wet end (the materials that come into contact with the solution) is composed of glass filled Kynar (PVDF), Viton, Carbon, and Ceramic.  The inlet connection is 2 inch male pipe thread, and the outlet is 1-1/2 inch male pipe thread.  There are two standard motors. The first is a 208/230V 60 hertz 3 horsepower totally enclosed fan cooled motor.  The second is a 3 Phase  60 hertz 208/230/460 and 50 hertz 190/220/380V 3 horsepower totally enclosed fan cooled motor.  There are performance differences between the hertz options.  The maximum internal pressure the pump can tolerate is 75PSI, and the maximum liquid temperature is 200 Fahrenheit or 93 Celsius. The March TE-8K-MD centrifugal magnetic drive pump is capable of handling mildly, or highly corrosive chemicals, acids, and solvents.  To determine if the March TE-8K-MD is suitable for your application, please contact March Pump.
