Sealless Mag Drive (Magnetic Drive) Pumps MAXP Series

Products – MAXP Series

The MAXP Series of sealless mag drive (magnetic drive) pumps has been specifically engineered to fully conform to ANSI B73.3 standards. Its rugged construction and proven design features make it ideal for use in installations handling toxic, noxious or corrosive liquids.

Request a Quote! Download Brochure

Category: Mag-Drive

Features

Max. Flow: 2000 gpm
Max. Head: 470 feet
Temperature: -150°F to 550°F (std.) to 750°F with centerline mounted casing
Max. Power: 200 hp
- Materials of Construction:
- 316 Stainless Steel
- 304 Stainless Steel
- Alloy 20
- Hastelloys
- Monel
- Carbon Steel
Connections: 150 or 300 LB RF Flanges
Bearings: Silicon Carbide
Working Pressure: 285 psig
Impeller: Enclosed
Speeds: 1800 and 3600 rpm
Magnets: Neodymium or Samarium Cobalt
Motor: “T” Frame
Secondary Containment: Optional
Steam Jackets: Optional
External Flush & Vent: Optional

Sealless Mag Drive (Magnetic Drive) Pumps MAXP Series

Products – MAXP Series

Related products

TE-7.5P-MD Magnetic Drive Pump

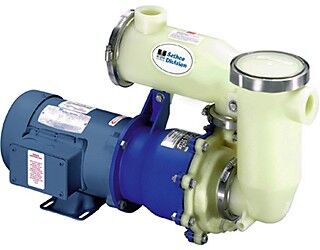

Self Priming Magnetic Drive Seal-less Centrifugal Pumps from Sethco

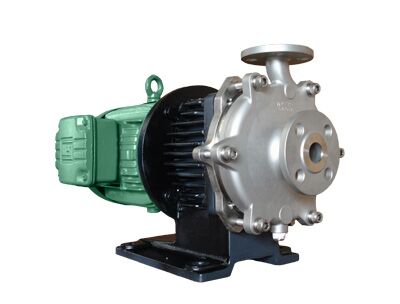

Close Coupled Magnetically Driven Centrifugal Process Pumps MPH
