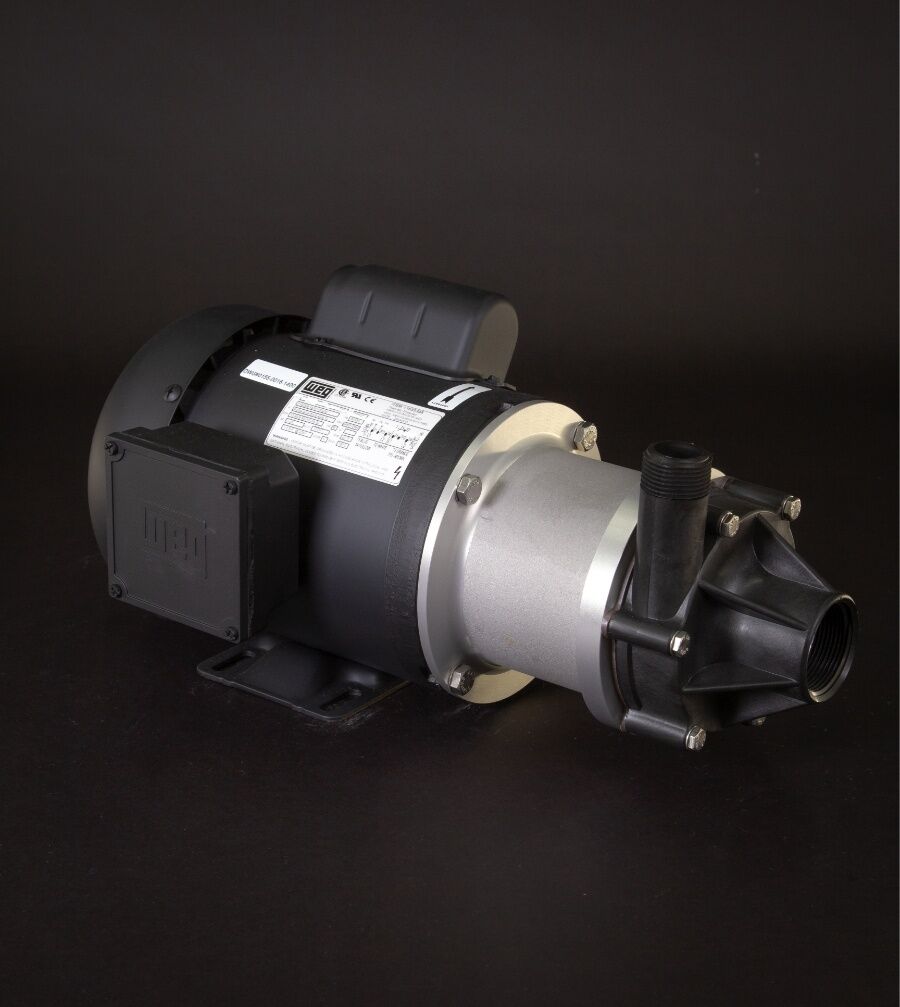

TE-7P-MD 1&3 Ph Magnetic Drive Pump
MARCH PUMPEN’s industrial TE-7P-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 53 gallons per minute at 10 feet, and its maximum head is 60 Feet (26PSI).
| Unit | 60Hz | |
|---|---|---|
| System | US | Metric |
| Max Flow | 53 GPM | 200 LPM |
| Max Head | 60 FT | 18.3 M |
| Power | 0.75 HP | 0.559 KW |
| 50Hz | |
|---|---|
| US | Metric |
| 47.5 GPM | 180 LPM |
| 40.3 FT | 12.3 M |
| 0.68 HP | 0.559 KW |
- Wet End: Polypropylene (Impeller,Front Housing, Rear Housing), Viton (O-Ring), Ceramic (Shaft, Thrust Washer), Ryton/Teflon/Carbon (Bushing)
- Additional Motor Options: Available in 0.75HP, 1HP, 1.5HP, 1HP Explosion Proof, 1.5HP Explosion Proof, or Washdown
- Max Internal Pressure: 50 PSI / 3.4 bar
- Max Liquid Temperature: 190 °F / 87 °C
- Note: Product image may be different than actual product received.
Pump Curves & General Installation Sheets
March Safety Instructions and Preventive Maintenance Guide
MARCH PUMPEN General Installation Guide
MARCH PUMPEN TE-7-MD 50Hz Curve
MARCH PUMPEN TE-7-MD 60Hz Curve
Part Numbers
| P/N | Pump Description | Modified With |
|---|---|---|
| 0155-0254-0100 | TE-7P-MD 1 Phase 0.75HP with Metal Motor Bracket | Standard |
| 0155-0254-0200 | TE-7P-MD 3 Phase 0.75HP with Metal Motor Bracket | Standard |
| 0155-0254-0300 | TE-7P-MD 1 Phase 1HP with Metal Motor Bracket | Standard |
| 0155-0254-0400 | TE-7P-MD 3 Phase 1HP with Metal Motor Bracket | Standard |
| 0155-0254-0800 | TE-7P-MD 3 Phase 575V 1HP with Metal Motor Bracket | Standard |
| The below are modified TE-7P-MD’s with Metal Motor Bracket | ||
| 0155-0254-0112 | TE-7P-MD 1 Phase 0.75HP with Metal Motor Bracket | Teflon O-Ring |
| 0155-0254-0212 | TE-7P-MD 3 Phase 0.75HP with Metal Motor Bracket | Teflon O-Ring |
| 0155-0254-0312 | TE-7P-MD 1 Phase 1HP with Metal Motor Bracket | Teflon O-Ring |
| 0155-0254-0412 | TE-7P-MD 3 Phase 1HP with Metal Motor Bracket | Teflon O-Ring |
| 0155-0254-0812 | TE-7P-MD 3 Phase 575V 1HP with Metal Motor Bracket | Teflon O-Ring |
| 0155-0254-0130 | TE-7P-MD 1 Phase 0.75HP with Metal Motor Bracket | Carbon Bushing |
| 0155-0254-0230 | TE-7P-MD 3 Phase 0.75HP with Metal Motor Bracket | Carbon Bushing |
| 0155-0254-0330 | TE-7P-MD 1 Phase 1HP with Metal Motor Bracket | Carbon Bushing |
| 0155-0254-0430 | TE-7P-MD 3 Phase 1HP with Metal Motor Bracket | Carbon Bushing |
| 0155-0254-0830 | TE-7P-MD 3 Phase 575V 1HP with Metal Motor Bracket | Carbon Bushing |
| 0155-0254-0132 | TE-7P-MD 1 Phase 0.75HP with Metal Motor Bracket | Mica Teflon Bushing |
| 0155-0254-0232 | TE-7P-MD 3 Phase 0.75HP with Metal Motor Bracket | Mica Teflon Bushing |
| 0155-0254-0332 | TE-7P-MD 1 Phase 1HP with Metal Motor Bracket | Mica Teflon Bushing |
| 0155-0254-0432 | TE-7P-MD 3 Phase 1HP with Metal Motor Bracket | Mica Teflon Bushing |
| 0155-0254-0832 | TE-7P-MD 3 Phase 575V 1HP with Metal Motor Bracket | Mica Teflon Bushing |
| P/N | Pump Description | Modified With |
|---|---|---|
| 0155-0295-0100 | TE-7P-MD 1 Phase 0.75HP with Plastic Motor Bracket | Standard |
| 0155-0296-0100 | TE-7P-MD 3 Phase 0.75HP with Plastic Motor Bracket | Standard |
| 0155-0297-0100 | TE-7P-MD 1 Phase 1HP with Plastic Motor Bracket | Standard |
| 0155-0298-0100 | TE-7P-MD 3 Phase 1HP with Plastic Motor Bracket | Standard |
| The below are modified TE-7P-MD’s with Plastic Motor Bracket | ||
| 0155-0295-0112 | TE-7P-MD 1 Phase 0.75HP with Plastic Motor Bracket | Teflon O-Ring |
| 0155-0296-0112 | TE-7P-MD 3 Phase 0.75HP with Plastic Motor Bracket | Teflon O-Ring |
| 0155-0297-0112 | TE-7P-MD 1 Phase 1HP with Plastic Motor Bracket | Teflon O-Ring |
| 0155-0298-0112 | TE-7P-MD 3 Phase 1HP with Plastic Motor Bracket | Teflon O-Ring |
| 0155-0295-0130 | TE-7P-MD 1 Phase 0.75HP with Plastic Motor Bracket | Carbon Bushing |
| 0155-0296-0130 | TE-7P-MD 3 Phase 0.75HP with Plastic Motor Bracket | Carbon Bushing |
| 0155-0297-0130 | TE-7P-MD 1 Phase 1HP with Plastic Motor Bracket | Carbon Bushing |
| 0155-0298-0130 | TE-7P-MD 3 Phase 1HP with Plastic Motor Bracket | Carbon Bushing |
| 0155-0295-0132 | TE-7P-MD 1 Phase 0.75HP with Plastic Motor Bracket | Mica Teflon Bushing |
| 0155-0296-0132 | TE-7P-MD 3 Phase 0.75HP with Plastic Motor Bracket | Mica Teflon Bushing |
| 0155-0297-0132 | TE-7P-MD 1 Phase 1HP with Plastic Motor Bracket | Mica Teflon Bushing |
| 0155-0298-0132 | TE-7P-MD 3 Phase 1HP with Plastic Motor Bracket | Mica Teflon Bushing |
Parts Breakdown
| Item | Part Number | Qty | Description |
|---|---|---|---|
| 0155-0254-0100 | 1 | TE-7P-MD, 1Phase, 3/4HP, Complete Standard Pump | |
| 0155-0254-0200 | 1 | TE-7P-MD, 3 Phase, 3/4HP, Complete Standard Pump | |
| 1 | 0155-0014-1000 | 6 | 1/4″-20 x 2″ Long Screw (Stainless) |
| 2 | 0155-0021-1000 | 6 | 1/4″ ID x 1/2″ OD Washer (Stainless) |
| 3 | 0155-0011-1000 | 1 | Front Housing (Polypropylene) |
| 4 | 0155-0010-1000 | 1 | 1/8″ CS x 4-3/8″ OD “O” Ring (Viton) |
| 5 | 0155-0009-1000 | 1 | Thrust Washer (Ceramic) |
| 6 | 0155-0039-1000 | 1 | 4.070″ Long Shaft (Ceramic) |
| 7 | 0155-0159-0500 | 1 | Impeller w/Teflon/Ryton/Carbon Bushing (Polypropylene) |
| 8 | 0155-0091-0100 | 1 | Rear Housing w/Ceramic Thrust Washer (Polypropylene) |
| 9 | 0155-0130-0200 | 1 | Drive Magnet |
| 10 | 1095-0015-0010 | 1 | Motor Bracket (Aluminum) |
| 11 | 0155-0017-1000 | 4 | 3/8”-16 x 3/4” Long Screw (Stainless) |
| 12 | 0155-0019-1000 | 4 | 3/8” ID x 5/8” OD Washer (Stainless) |
| 13 | 0155-0016-1000 | 1 | Motor, TEFC, 1 Phase, 115/230V, 50/60 Hz, 3/4 HP |
| 14 | 0155-0022-1000 | 1 | Motor, TEFC, 3 Phase, 230/460V, 50/60 Hz, 3/4 HP |
| WEK | 0155-0255-0100 | 1 | Wet End Kit (Items: 1, 2, 3, 4, 5, 6, 7, 8) |
| PLM | 0155-0265-0100 | 1 | Pump Less Motor (Items: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12) |
Options
| Item | Part Number | Qty | Description |
|---|---|---|---|
| 4 | 0155-0071-1000 | 1 | 1/8″ CS x 4-3/8″ OD “O” Ring (Teflon Encapsulated Viton) |
| 4 | 0155-0105-1000 | 1 | 1/8″ CS x 4-3/8″ OD “O” Ring (EPDM) |
| 5 | 0155-0084-1000 | 1 | Thrust Washer (Hastelloy “C”) |
| 5 | 0155-0149-1000 | 1 | Thrust Washer (Silicon Carbide) |
| 5 | 0155-0233-1000 | 1 | Thrust Washer (Zirconium) |
| 6 | 0155-0146-1000 | 1 | 4.070″ Long Shaft (Stainless) |
| 6 | 0155-0234-1000 | 1 | 4.070″ Long Shaft (Hastelloy “C”) |
| 7 | 0155-0159-0200 | 1 | Impeller w/Carbon Bushing (Polypropylene) |
| 7 | 0155-0159-0400 | 1 | Impeller w/Mica Teflon Bushing (Polypropylene) |
| 10 | 0155-0092-0100 | 1 | Motor Bracket (Plastic) |
| 0155-0173-1000 | 1 | Motor, TEFC, 1 Phase, 115/230V, 50/60 Hz, 1 HP | |
| 0155-0174-1000 | 1 | Motor, TEFC, 3 Phase, 230/460V, 50/60 Hz, 1 HP | |
| 0155-0059-1000 | 1 | Motor, Explosion Proof, 1 Phase (Contact March For Additional Specs) | |
| 0155-0060-1000 | 1 | Motor, Explosion Proof, 3 Phase (Contact March For Additional Specs) | |
| 1 | Motor, Washdown, 1 Phase (Contact March For Additional Specs) | ||
| 1 | Motor, Washdown, 3 Phase (Contact March For Additional Specs) | ||
| 0750-1011-1000 | 1 | Stainless Steel Tag w/Customer’s Desired Information (Not Shown) |
Dimensional Drawings
Dimensional Drawing TE-7P-MD 3Ph 1HP
Dimensional Drawing TE-7P-MD 1Ph 1HP
Dimensional Drawing TE-7P-MD 3Ph 3/4HP
Dimensional Drawing TE-7P-MD 1Ph 3/4HP
Motor Information
0155-0016-1000 Motor
Conduit Box, TEFC, IP55
60Hz: 1Ph 0.75 HP / 0.55 kW, 115-208/230V, 9.2-4.5/4.2 AMPS, 3450 RPM
50Hz: 1Ph 0.68 HP / 0.5 kW, 115/230V 9.4/4.7 AMPS, 2850 RPM
0155-0022-1000 Motor
Conduit Box, TEFC, IP55, VFD Capable
60Hz: 3Ph 0.75 HP / 0.55 kW, 208-230/460V, 2.4-2.2/1.1 AMPS, 3450 RPM
50Hz: 3Ph 0.75 HP / 0.55 kW, 190/380V, 2.6/1.3 AMPS, 2850 RPM
0155-0173-1000 Motor
Conduit Box, TEFC, IP55
60Hz: 1Ph 1 HP / 0.75 kW, 115-208/230V, 12.6-6.3/6.2 AMPS, 3450 RPM
50Hz: 1Ph 1 HP / 0.75 kW, 110/220V, 14.3/7.1 AMPS, 2850 RPM
0155-0174-1000 Motor
Conduit Box, TEFC, IP55, VFD Capable
60Hz: 3Ph 1HP / 0.75 kW, 208-230/460V, 3.3-3.1/1.5 AMPS, 3450 RPM
50Hz: 3Ph 1HP / 0.75 kW, 190/380V, 3.3/1.7 AMPS, 2850 RPM (Usable at 220/415V)
Perfect for Applications Including
Applications for the TE-7P-MD Magnetic Drive Pump include chemical recirculation, chemical transfer, bicarbonate systems, deionized water systems, refrigerators, scrubber systems, detergent mixers, computer cooling, carbon arc furnace cooling, ion exchange recovery, and aquariums.
Great for Chemicals Including
The TE-7P-MD has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Hydrochloric Acid (Muriatic), Nitric Acid, Phosphoric Acid, Potassium Chloride, Potassium Hydroxide, Sodium Hydroxide (Caustic Soda), Sodium Chloride, Sulfuric Acid, Fresh Water, Salt Water, DI Water, and many more chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. The TE-7P-MD may have been modified to handle these chemicals. Please contact MARCH PUMPEN to review your application before using the TE-7P-MD. Chemical Resistance Chart
Summary Paragraph
MARCH PUMPEN’s industrial TE-7P-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 53 gallons per minute at 10 feet, and its maximum head is 60 Feet (26PSI). The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Viton, Ryton/Teflon/Carbon, and Ceramic. The inlet connection is 1-1/2 inch female pipe thread, and the outlet is 1 inch male pipe thread. There are two standard motors. The first is a 1 Phase 60 hertz 115/208/230V and 50 hertz 115/230V 0.75 horsepower totally enclosed fan cooled motor. The second is a 3 Phase 60 hertz 208/230/460V and 50 hertz 190/380V 0.75 horsepower totally enclosed fan cooled motor. There are performance differences between the hertz options. The maximum internal pressure the pump can tolerate is 50PSI, and the maximum liquid temperature is 190 Fahrenheit or 87 Celsius. The March TE-7P-MD centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March TE-7P-MD is suitable for your application, please contact MARCH PUMPEN.
