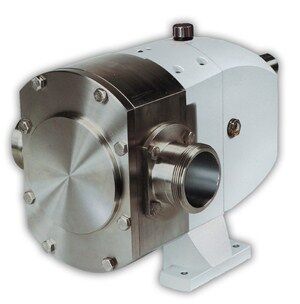

Jabsco: Hy-Line LH Series Hygienic Rotary Lobe Pump

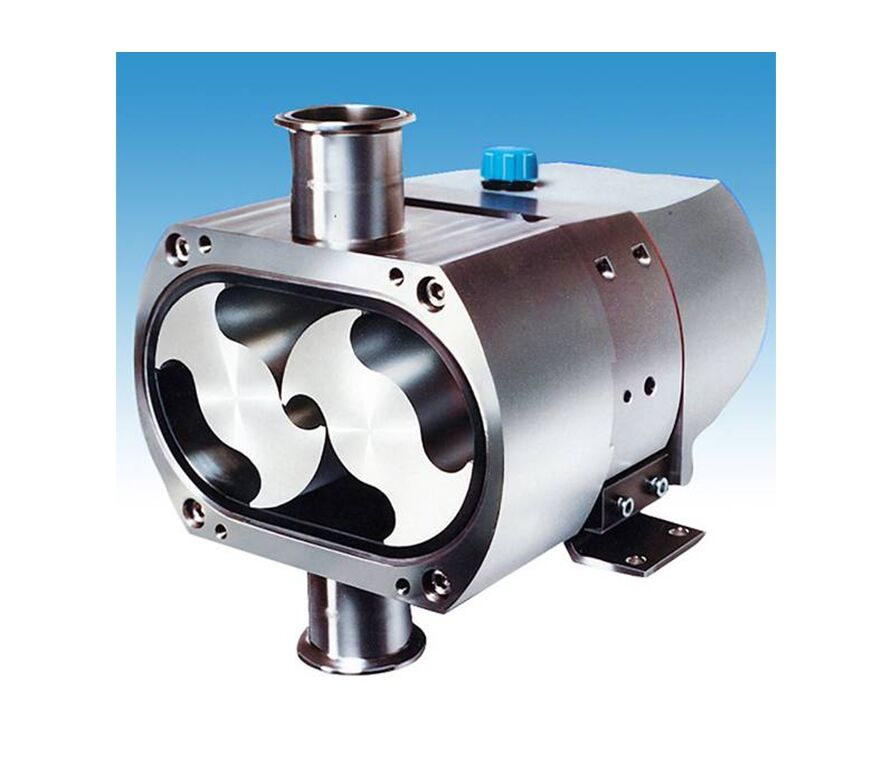

Jabsco 24-series hygienic rotary lobe pumps have been in service worldwide for nearly 20 years. The continued popularity of the 24-series reflects the advanced hygienic design and manufacturing methods brought in by Jabsco at the time of its introduction. 24-series pumps use the tri-lobe rotor design proven in service with the world’s leading producers of food products, pharmaceuticals and cosmetics.

Category:

Jabsco 24-series hygienic rotary lobe pumps have been in service worldwide for nearly 20 years. The continued popularity of the 24-series reflects the advanced hygienic design and manufacturing methods brought in by Jabsco at the time of its introduction. 24-series pumps use the tri-lobe rotor design proven in service with the world’s leading producers of food products, pharmaceuticals and cosmetics.

Model No.: LH Series

  • Flow rates up to 126m³/hr (35 litres/second)
  • Pressures up to Up to 10bar (146 psi)
  • Temperature range: -40ºC to +200ºC
  • Liquid viscosity range: 1 to 1,000,000 centipoise

Applications:

  • Food
  • Personal Care
  • Chemical

11 Models

LH32 Hy~Line Rotary Lobe Pump
Port Size inlet / outlet – Standard 3/4″ or 1″ (19 or 25 mm)
Port Size inlet / outlet – Enlarged 3/4″ or 1″ (19 or 25 mm)
Displacement US Gallons (litres) 0.92 Gallons (3.5 litre) @ 100 revs
Flow Rate (US gallons & litres) 13.7 GPM (52 LPM)
Operating Pressure 217 psi (15 bar)
Speed 1500 max(rpm)
Operating temperature -22 to 284F (-30 to 140C)
Dimensions (H x W x D) 213 x 192 x 166 (mm)
Weight 8(kg)
18(lb)
LH34 Hy~Line Rotary Lobe Pump
Port Size inlet / outlet – Standard 1″(25mm)
Port Size inlet / outlet – Enlarged 1 1/12″ (38mm)
Displacement US Gallons (litres) 1.85 Gallons (7 litre) @ 100 revs
Flow Rate (US gallons & litres) 27.7 GPM (105 LPM)
Operating Pressure 116 psi (8 bar)
Speed 1500 max(rpm)
Operating temperature -22 to 284F (-30 to 140C)
Dimensions (H x W x D) 229 x 192 x 166 (mm)
Weight 10(kg)
22(lb)
LH42 Hy~Line Rotary Lobe Pump
Port Size inlet / outlet – Standard 1″ (25mm)
Port Size inlet / outlet – Enlarged 1 1/12″ (38mm)
Displacement US Gallons (litres) 3.25 Gallons (12.3 litre) @ 100 revs
Flow Rate (US gallons & litres) 32.5 GPM (123 LPM)
Operating Pressure 217 psi (15 bar)
Speed 1000 max(rpm)
Operating temperature -22 to 284F (-30 to 140C)
Dimensions (H x W x D) 274 x 223 x 196 (mm)
Weight 18(kg)
40(lb)
LH44 Hy~Line Rotary Lobe Pump
Port Size inlet / outlet – Standard 1 1/12″ (38mm)
Port Size inlet / outlet – Enlarged 2″ (50mm)
Displacement US Gallons (litres) 5.39 Gallons (20.4 litre) @ 100 revs
Flow Rate (US gallons & litres) 53.9 GPM (204 LPM)
Operating Pressure 116 psi (8 bar)
Speed 1000 max(rpm)
Operating temperature -22 to 284F (-30 to 140C)
Dimensions (H x W x D) 290 x 223 x 196 (mm)
Weight 20(kg)
44(lb)
LH52 Hy~Line Rotary Lobe Pump
Port Size inlet / outlet – Standard 1 1/12″ (38mm)
Port Size inlet / outlet – Enlarged 2″ (50mm)
Displacement US Gallons (litres) 7.00 Gallons (26.5 litre) @ 100 revs
Flow Rate (US gallons & litres) 70.0 GPM (265 LPM)
Operating Pressure 217 psi (15 bar)
Speed 1000 max(rpm)
Operating temperature -22 to 284F (-30 to 140C)
Dimensions (H x W x D) 386 x 249 x 208 (mm)
Weight 32(kg)
70(lb)
LH54 Hy~Line Rotary Lobe Pump
Port Size inlet / outlet – Standard 2″ (50mm)
Port Size inlet / outlet – Enlarged 3″ (70mm)
Displacement US Gallons (litres) 12.02 Gallons (45.5 litre) @ 100 revs
Flow Rate (US gallons & litres) 120.2 GPM (455 LPM)
Operating Pressure 116 psi (8 bar)
Speed 1000 max(rpm)
Operating temperature -22 to 284F (-30 to 140C)
Dimensions (H x W x D) 414 x 259 x 213 (mm)
Weight 35(kg)
77(lb)
LH62 Hy~Line Rotary Lobe Pump
Port Size inlet / outlet – Reduced 2″ (50mm)
Port Size inlet / outlet – Standard 2 1/2″ (63mm)
Port Size inlet / outlet – Enlarged 3″ (76mm)
Displacement US Gallons (litres) 16.9 Gallons (64 litre) @ 100 revs
Flow Rate (US gallons & litres) 121.8 GPM (461 LPM)
Operating Pressure 217 psi (15 bar)
Speed 720 max(rpm)
Operating temperature -22 to 284F (-30 to 140C)
Dimensions (H x W x D) 460 x 270 x 311 (mm)
Weight 61(kg)
134(lb)
LH64 Hy~Line Rotary Lobe Pump
Port Size inlet / outlet – Standard 3″ (76mm)
Port Size inlet / outlet – Enlarged 4″ (100mm)
Displacement US Gallons (litres) 25.10 Gallons (95 litre) @ 100 revs
Flow Rate (US gallons & litres) 180.7 GPM (684 LPM)
Operating Pressure 116 psi (8 bar)
Speed 720 max(rpm)
Operating temperature -22 to 284F (-30 to 140C)
Dimensions (H x W x D) 464 x 302 x 311 (mm)
Weight 65(kg)
143(lb)
LH72 Hy~Line Rotary Lobe Pump
Port Size inlet / outlet – Standard 3″ (76mm)
Port Size inlet / outlet – Enlarged 4″ (100 mm)
Displacement US Gallons (litres) 32.5 Gallons (123 litre) @ 100 revs
Flow Rate (US gallons & litres) 220.8 GPM (836 LPM)
Operating Pressure 217 psi (15 bar)
Speed 680 max(rpm)
Operating temperature -22 to 284F (-30 to 140C)
Dimensions (H x W x D) 486 x 380 x 363 (mm)
Weight 125(kg)
275(lb)
LH74 Hy~Line Rotary Lobe Pump
Port Size inlet / outlet – Standard 4″ (100mm)
Port Size inlet / outlet – Enlarged 6″ (152mm)
Displacement US Gallons (litres) 54.15 Gallons (205 litre) @ 100 revs
Flow Rate (US gallons & litres) 324.9 GPM (1230 LPM)
Operating Pressure 116 psi (8 bar)
Speed 600 max(rpm)
Operating temperature -22 to 284F (-30 to 140C)
Dimensions (H x W x D) 526 x 386 x 363 (mm)
Weight 145(kg)
319(lb)
LH76 Hy~Line Rotary Lobe Pump
Port Size inlet / outlet – Standard 4″ (100mm)
Port Size inlet / outlet – Enlarged 6″ (152mm)
Displacement US Gallons (litres) 79.65 Gallons (301.5 litre) @ 100 revs
Flow Rate (US gallons & litres) 477.9 GPM (1809 LPM)
Operating Pressure 72 psi (5 bar)
Speed 600 max (rpm)
Operating temperature -22 to 284F (-30 to 140C)
Dimensions (H x W x D) 573 x 412 x 363 (mm)
Weight 165(kg)
363(lb)
Body Materials 316 Stainless Steel
Rotor 316 Stainless Steel
Port Type All US and European standards
Seal Options include: Front-loaded single mechanical face-type seals of hygienic design. Materials include carbon, stainless steel and silicon carbide. Low-pressure flush seals use the same single mechanical seal with an additional housing. Double mechanical seals use all the components from single seals. Front loaded single O-Ring seals. Front loaded double O-Ring seals. Multiple PTFE lip seal complete with controlled release food-grade grease injection system.
Bearings High specification taper roller bearings
Operating temperature -40 to 492°F (-40 to 200°C)
Approvals 3A variants with Nitrile or EPDM elastomers
