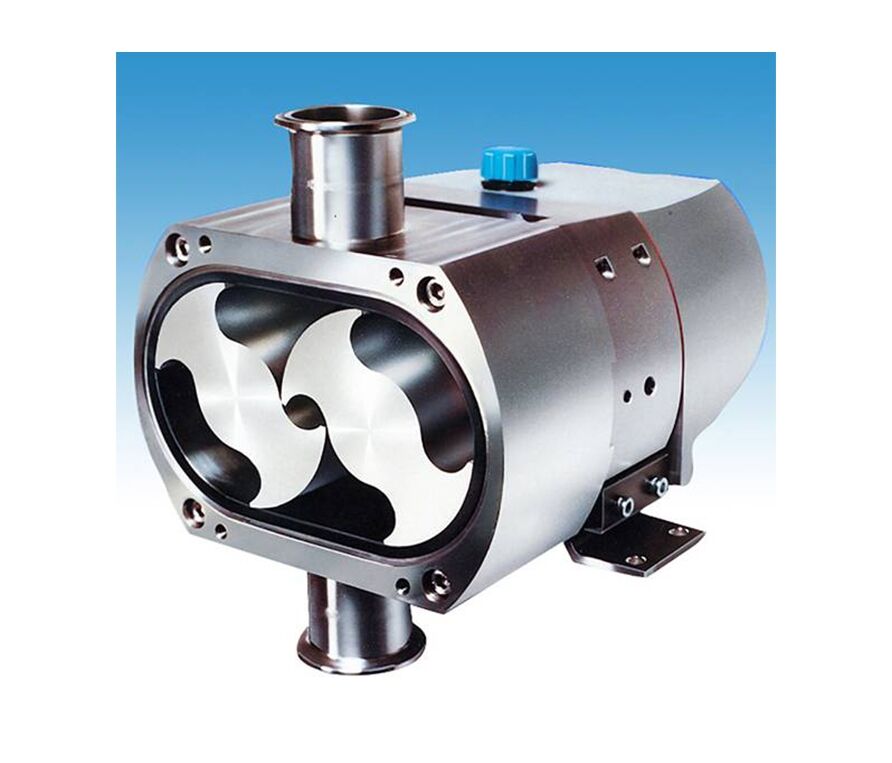

Self Primin Newpump

Jabsco: 24 Series Hygienic Rotary Lobe Pump

Tri Lobe

Jabsco 24-series hygienic rotary lobe pumps have been in service worldwide for nearly 20 years. The continued popularity of the 24-series reflects the advanced hygienic design and manufacturing methods brought in by Jabsco at the time of its introduction. 24-series pumps use the tri-lobe rotor design proven in service with the world’s leading producers of food products, pharmaceuticals and cosmetics.

Request a Quote!
Category:

Jabsco 24-series hygienic rotary lobe pumps have been in service worldwide for nearly 20 years. The continued popularity of the 24-series reflects the advanced hygienic design and manufacturing methods brought in by Jabsco at the time of its introduction. 24-series pumps use the tri-lobe rotor design proven in service with the world’s leading producers of food products, pharmaceuticals and cosmetics.

Specifications

Body Materials 316 Stainless Steel
Rotor 316 Stainless Steel
Port Type All US and European standards
Seal Options include: Front-loaded single mechanical face-type seals of hygienic design. Materials include carbon, stainless steel and silicon carbide. Low-pressure flush seals use the same single mechanical seal with an additional housing. Double mechanical seals use all the components from single seals. Front loaded single O-Ring seals. Front loaded double O-Ring seals. Multiple PTFE lip seal complete with controlled release food-grade grease injection system.
Bearings High specification taper roller bearings
Operating temperature -40 to 492°F (-40 to 200°C)
Approvals 3A variants with Nitrile or EPDM elastomers

10 Models

A1 Jabsco 24 Series Hygienic Positive Displacement Pump
Port Size inlet / outlet – Standard 1″(25mm)
Port Size inlet / outlet – Enlarged 1 1/2″ (38mm)
Displacement US Gallons (litres) 2.75 Gallons (10.4 litre) @ 100 revs
Flow Rate (US gallons & litres) 27.5 GPM (100 LPM)
Operating Pressure 217 psi (15 bar)
Speed 960 Max(rpm)
Operating temperature -40 to 492F (-40 to 200C)
Dimensions (H x W x D) 335 x 204 x 188 (mm)
Weight 14(kg)
31(lb)
A2 Jabsco 24 Series Hygienic Positive Displacement Pump
Port Size inlet / outlet – Standard 1″(25mm)
Port Size inlet / outlet – Enlarged 1 1/2″ (38mm)
Displacement US Gallons (litres) 4.91 Gallons (18.6 litre) @ 100 revs
Flow Rate (US gallons & litres) 49.1 GPM (177 LPM)
Operating Pressure 145 psi (10 bar)
Speed 960 Max(rpm)
Operating temperature -40 to 492F (-40 to 200C)
Dimensions (H x W x D) 355 x 204 x 188 (mm)
Weight 18(kg)
40(lb)
B1 Jabsco 24 Series Hygienic Positive Displacement Pump
Port Size inlet / outlet – Standard 1 1/2″ (38 mm)
Port Size inlet / outlet – Enlarged 2″ (50 mm)
Displacement US Gallons (litres) 6.47 Gallons (24.5 litre) @ 100 revs
Flow Rate (US gallons & litres) 64.7 GPM (237 LPM)
Operating Pressure 217 psi (15 bar)
Speed 960 Max(rpm)
Operating temperature -40 to 492F (-40 to 200C)
Dimensions (H x W x D) 408 x 226 x 227 (mm)
Weight 29(kg)
64(lb)
B2 Jabsco 24 Series Hygienic Positive Displacement Pump
Port Size inlet / outlet – Standard 1 1/2″ (38 mm)
Port Size inlet / outlet – Enlarged 2″ (50 mm)
Displacement US Gallons (litres) 9.96 Gallons (37.7 litre) @ 100 revs
Flow Rate (US gallons & litres) 99.6 GPM (362 LPM)
Operating Pressure 145 psi (10 bar)
Speed 960 Max(rpm)
Operating temperature -40 to 492F (-40 to 200C)
Dimensions (H x W x D) 428 x 236 x 227 (mm)
Weight 33(kg)
73(lb)
C1 Jabsco 24 Series Hygienic Positive Displacement Pump
Port Size inlet / outlet – Standard 2″ (50mm)
Port Size inlet / outlet – Enlarged 3″ (76 mm)
Displacement US Gallons (litres) 16.46 Gallons (62.3 litre) @ 100 revs
Flow Rate (US gallons & litres) 118 GPM (448 LPM)
Operating Pressure 203 psi (14 bar)
Speed 720 Max(rpm)
Operating temperature -40 to 492F (-40 to 200C)
Dimensions (H x W x D) 538 x 288 x 319 (mm)
Weight 70(kg)
154(lb)
C2 Jabsco 24 Series Hygienic Positive Displacement Pump
Port Size inlet / outlet – Standard 2″ (50mm)
Port Size inlet / outlet – Enlarged 3″ (76 mm)
Displacement US Gallons (litres) 24.72 Gallons (93.6 litre) @ 100 revs
Flow Rate (US gallons & litres) 173 GPM (655 LPM)
Operating Pressure 145 psi (10 bar)
Speed 700 Max(rpm)
Operating temperature -40 to 492F (-40 to 200C)
Dimensions (H x W x D) 564 x 296 x 319 (mm)
Weight 75(kg)
165(lb)
D1 Jabsco 24 Series Hygienic Positive Displacement Pump
Port Size inlet / outlet – Standard 3″ (76mm)
Port Size inlet / outlet – Enlarged 4″ (100mm)
Displacement US Gallons (litres) 32.23 Gallons (122 litre) @ 100 revs
Flow Rate (US gallons & litres) 209.5 GPM (793 LPM)
Operating Pressure 174 psi (12 bar)
Speed 650 Max(rpm)
Operating temperature -40 to 492F (-40 to 200C)
Dimensions (H x W x D) 623 x 322 x 355 (mm)
Weight 112(kg)
246(lb)
D2 Jabsco 24 Series Hygienic Positive Displacement Pump
Port Size inlet / outlet – Standard 3″ (76mm)
Port Size inlet / outlet – Enlarged 4″ (100mm)
Displacement US Gallons (litres) 42.53 Gallons (161 litre) @ 100 revs
Flow Rate (US gallons & litres) 264.2 GPM (1000 LPM)
Operating Pressure 130 psi (9 bar)
Speed 620 Max(rpm)
Operating temperature -40 to 492F (-40 to 200C)
Dimensions (H x W x D) 647 x 346 x 355 (mm)
Weight 119(kg)
262(lb)
E2 Jabsco 24 Series Hygienic Positive Displacement Pump
Port Size inlet / outlet – Standard 6″ (152 mm)
Displacement US Gallons (litres) 92.46 Gallons (350 litre) @ 100 revs
Flow Rate (US gallons & litres) 554.8 GPM (2100 LPM)
Operating Pressure 174 psi (12 bar)
Speed 600 Max(rpm)
Operating temperature -40 to 492F (-40 to 200C)
Dimensions (H x W x D) 770 x 425 x 438 (mm)
Weight 300(kg)
660(lb)
S2 Jabsco 24 Series Hygienic Positive Displacement Pump
Port Size inlet / outlet – Standard 1″ (25mm)
Displacement US Gallons (litres) 0.92 Gallons (3.6 litre) @ 100 revs
Flow Rate (US gallons & litres) 9.2 GPM (36 LPM)
Operating Pressure 101 psi (7 bar)
Speed 1000 Max(rpm)
Operating temperature -22 to 302F (-30 to 150C)
Dimensions (H x W x D) 261 x 146 x 106 (mm)
Weight 10(kg)
22(lb)

Model No.: 24 Series

  • Flow rates up to 126m³/hr (35 litres/second)
  • Pressures up to Up to 10bar (146 psi)
  • Temperature range: -40ºC to +200ºC
  • Liquid viscosity range: 1 to 1,000,000 centipoise

Applications:
Food

Personal Care

Chemical

Related products

Jabsco: 55 Series & Ultima Ultra Hygienic Rotary Lobe Pumps
Jabsco: 55 Series & Ultima Ultra Hygienic Rotary Lobe Pumps
Read More

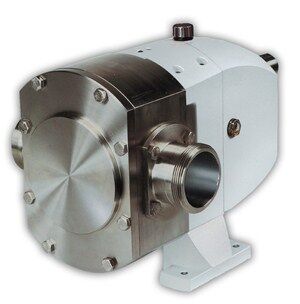

Jabsco: Hy-Line LH Series Hygienic Rotary Lobe Pump
