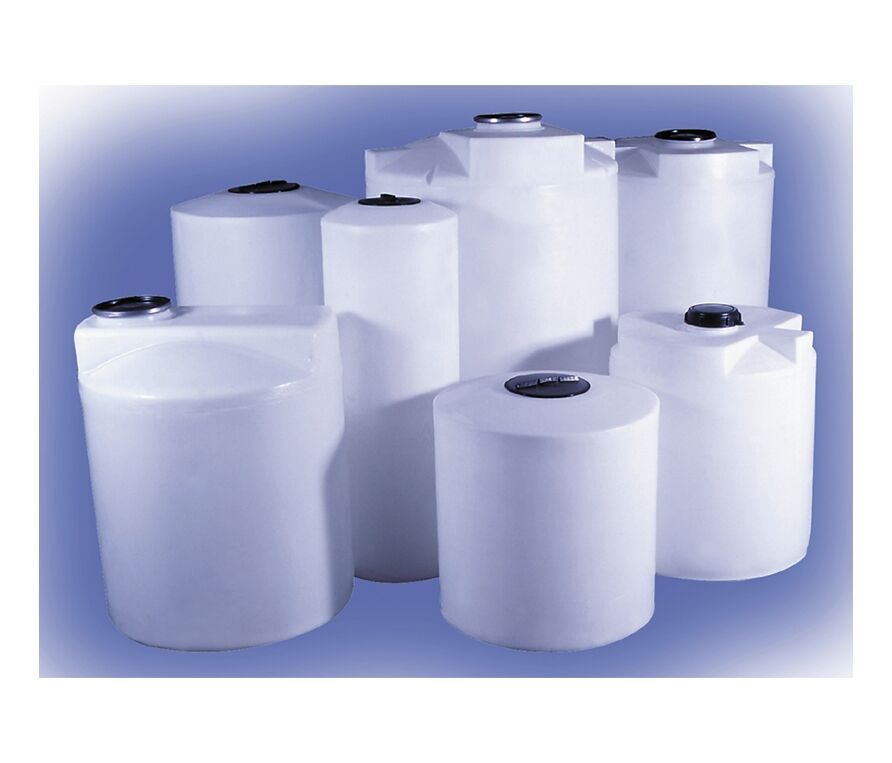

VERTICAL STORAGE TANKS

  • Industrial (ASTM D1998-15) and Commercial design standards available.
  • Material options for a diverse range of applications.
  • High-density linear polyethylene (HDLPE)*- black and natural white color – complies with FDA Regulation 177.1520 and NSF/ANSI 61 standards.
  • Cross-linked, high density polyethylene (XLPE) – black and natural white color.
  • For outdoor Sodium Hypochlorite applications – Opaque white UV block out resin #880059 is available for vertical tanks up to 12500 gallons are vertical tanks (all sizes) can be covered with 1″ thick polyurathane foam insulation with mastic coatings to block harmful UV exposure.
  • Sulfuric acid resin #880046 (All size vertical tanks except for 16,500 gallon).
  • Available with IBC 2015/CBC 2016 seismic and 150 mph wind restraint tie-down systems.
  • Specific gravity ratings are based on the industry’s most severe calculation.
  • Standard specific gravity choices are 1.35, 1.5 and 1.9, other ratings are available upon request.
  • All materials are UV stabilized for long-term outdoor service.
Category:
  • Industrial (ASTM D1998-15) and Commercial design standards available.
  • Material options for a diverse range of applications.
  • High-density linear polyethylene (HDLPE)*- black and natural white color – complies with FDA Regulation 177.1520 and NSF/ANSI 61 standards.
  • Cross-linked, high density polyethylene (XLPE) – black and natural white color.
  • For outdoor Sodium Hypochlorite applications – Opaque white UV block out resin #880059 is available for vertical tanks up to 12500 gallons are vertical tanks (all sizes) can be covered with 1″ thick polyurathane foam insulation with mastic coatings to block harmful UV exposure.
  • Sulfuric acid resin #880046 (All size vertical tanks except for 16,500 gallon).
  • Available with IBC 2015/CBC 2016 seismic and 150 mph wind restraint tie-down systems.
  • Specific gravity ratings are based on the industry’s most severe calculation.
  • Standard specific gravity choices are 1.35, 1.5 and 1.9, other ratings are available upon request.
  • All materials are UV stabilized for long-term outdoor service.

Note: *** Tank dimensions and mold features may vary depending on manufacturing location – please contact factory for drawing specific to the F.O.B. location. * High-density linear polyethylene (HDLPE) black and natural white colors. Specifications Subject to Change Without Notice. Dimensions listed below and on drawings may vary +/- 3% (standard Molding tolerance).

1530000N– Vertical 22 18 23 N/A N/A L
1541000N– Vertical 30 23 23 N/A N/A C
1000110N– Vertical Closed Top 35 22 36 N/A N/A M
1540700N– Vertical 50 23 38 N/A N/A C
5680000N– Vertical Closed Top 60 26 40 N/A N/A M L C
1550000N– Vertical 65 23 46 N/A N/A L
1007200N– Vertical 70 23 42 N/A N/A C
1009000N– Vertical 70 23 41 N/A N/A L
5690100N– Vertical Closed Top 90 34 41 N/A N/A M
1012700N– Vertical 100 30 41 N/A N/A P
8010000N– Vertical 110 33 41 N/A N/A M
5700100N– Vertical Closed Top 120 34 51 Yes N/A M L
1540200N– Vertical 120 32 39 N/A N/A C
1007300N– Vertical 130 29 51 N/A N/A C
1009500N– Vertical 130 29 49 N/A N/A L
1012800N– Vertical 150 30 59 N/A N/A P
5710100N– Vertical Closed Top 150 34 61 Yes N/A M L
1008400N– Vertical 175 29 66 N/A N/A L
1540400N– Vertical 190 42 47 N/A N/A C
1008000N– Vertical 200 36 53 N/A N/A C
5720100N– Vertical Closed Top 200 40 57 Yes N/A M
1540300N– Vertical 200 36 59 N/A N/A C
1540000N– Vertical 200 40 48 N/A N/A L
8020000N– Vertical 200 33 69 N/A N/A M
40300 Pickup 210 60 x 51 29 Yes N/A C P
1012900N– Vertical 210 36 55 N/A N/A P
5990500N– Vertical Closed Top 250 34 88 Yes N/A L
1008100N– Vertical 250 36 64 N/A N/A C
5730100N– Vertical Closed Top 250 40 69 Yes N/A M
5740100N– Vertical Closed Top 275 47 59 Yes N/A M
1630200N– Vertical 290 42 59 N/A N/A C
1013000N– Vertical 290 36 72 N/A N/A P
1011200N– Vertical 300 35 85 N/A N/A L
8030000N– Vertical 300 33 94 N/A N/A M
8040000N– Vertical 300 46 51 N/A N/A M
1630000N– Vertical 300 35 80 Yes N/A M
1630100N– Vertical 300 36 82 N/A N/A C
40160 Pickup 325 62 33 Yes N/A C P
1008200N– Vertical 330 47 50 N/A N/A C
1011600N– Vertical 330 44 58 N/A N/A P
1630300N– Vertical 330 48 55 N/A N/A C
5750100N– Vertical Closed Top 330 47 68 Yes N/A M
5760100N– Vertical Closed Top 360 53 59 Yes N/A M
1740000N– Vertical 400 45 62 Yes N/A L
40102 Pickup 425 65 39 Yes N/A C P
5770100N– Vertical Closed Top 440 53 69 Yes N/A M
5780100N– Vertical Closed Top 500 53 77 Yes N/A M
1800400N– Vertical 550 48 75 Yes N/A C
1800000N-(L) Vertical 550 48 75 Yes N/A L
1800200N-(P) Vertical 550 48 75 Yes N/A P
1800500N-(M) Vertical 550 48 75 Yes N/A M
1820000N-(L,C) Vertical 550 64 47 Yes N/A L C
8060000N-(M,P) Vertical 550 64 46 N/A N/A M P
1700200N– Vertical 710 60 68 N/A N/A C
1810000N-(L) Vertical 850 48 117 Yes N/A L
1810200N-(P) Vertical 850 48 117 Yes N/A P
1810300N-(M) Vertical 850 48 114 Yes N/A M
1831000N– Vertical 1000 60 89 N/A N/A C
1830600N– Vertical 1000 64 80 Yes N/A P
1830000N-(L,M) Vertical 1100 64 90 Yes N/A L M
1830100N–(P) Vertical 1100 64 90 Yes N/A P
1710000N-(L) Vertical 1100 86 55 Yes N/A L
1710100N-(P) Vertical 1100 86 55 Yes N/A P
1710200N-(C) Vertical 1100 86 55 Yes N/A C
8120000N– Vertical 1100 86 55 N/A N/A M
1830200N– Vertical 1200 60 109 N/A N/A C
1830400N– Vertical 1300 72 87 N/A N/A C
1840400N– Vertical 1500 60 137 N/A N/A C
1770000N–(L) Vertical 1500 86 72 Yes N/A L
1770100N–(P) Vertical 1500 86 72 Yes N/A P
1770300N–(C) Vertical 1500 86 72 Yes N/A C
8120100N– Vertical 1500 86 72 N/A N/A M
1840000N–(L) Vertical 1550 64 124 Yes N/A L
1840200N–(M) Vertical 1550 64 124 Yes N/A M
1840100N–(P) Vertical 1550 64 124 Yes N/A P
1780200N– Vertical 1900 72 119 N/A N/A C
8300000N– Vertical 1900 64 147 Yes N/A P
5050000N–(L) Vertical 2000 90 88 Yes 2-3″ L
5050100N–(P) Vertical 2000 90 88 Yes 2-3″ P
8130000N– Vertical 2000 90 88 Yes 2-3″ M
5050300N– Vertical 2000 96 84 Yes 2-3″ C
5090000N-(L) Vertical 2500 90 107 Yes 2-3″ L
5090100N–(P) Vertical 2500 90 107 Yes 2-3″ P
8140000N– Vertical 2500 90 107 Yes 2-3″ M
5090300N– Vertical 2500 96 98 Yes 2-3″ C
8390000N– Vertical 2650 102 97 N/A 2-3″ M
5130000N-(L) Vertical 3000 90 127 Yes 2-3″ L
5130100N–(P) Vertical 3000 90 127 Yes 2-3″ P
8160000N– Vertical 3000 90 127 Yes 2-3″ M
5130300N– Vertical 3000 96 111 Yes 2-3″ C
7410000N-(L) Vertical 3000 102 96 Yes 2-3″ L
7410100N–(P,C) Vertical 3000 102 96 Yes 2-3″ P C
8190000N– Vertical 3650 102 126 N/A 2-3″ M
5190000N– Vertical 3900 90 163 Yes 2-3″ L
7421100N– Vertical 4000 120 104 Yes 2-3″ C
7360000N– Vertical 4100 102 130 Yes 2-3″ P
8200000N– Vertical 4100 120 100 Yes 2-3″ M
5210000N– Vertical 4400 90 182 Yes 2-3″ L
7000400N– Vertical 4500 143 91 Yes N/A C
7420000N-(L) Vertical 4500 102 142 Yes 2-3″ L
7420200N–(C) Vertical 4500 102 142 Yes 2-3″ C
7000500N– Vertical 4600 120 116 Yes 2-3″ C
8210000N– Vertical 4650 102 154 N/A 2-3″ M
5480000N– Vertical 4900 90 202 Yes 2-3″ L
1002100N– Vertical 5000 102 154 Yes 2-3″ P
7020000N– Vertical 5500 90 216 Yes 2-3″ L
7000000N–(L) Vertical 5500 120 132 Yes 2-6″ L
7000100N–(P) Vertical 5500 120 132 Yes 2-6″ P
5250000N– Vertical 5600 142 102 Yes N/A P
7430000N-(L,P,C) Vertical 6000 102 188 Yes 2-3″ L P C
7140300N– Vertical 6000 120 145 Yes 2-6″ C
8220000N– Vertical 6200 120 140 Yes N/A M
7140000N-(L) Vertical 6500 120 153 Yes 2-6″ L
7140100N–(P) Vertical 6500 120 153 Yes 2-6″ P
5300400N– Vertical 6600 120 158 Yes 2-6″ C
5300700N– Vertical 7000 142 122 Yes 2-6″ L
7440000N– Vertical 7500 102 234 Yes 2-3″ L
7370000N– Vertical 7900 120 177 Yes 2-6″ L
5300600N– Vertical 8000 120 186 Yes 2-6″ C
7400000N– Vertical 8500 120 194 Yes 2-6″ L
5360100N– Vertical 8750 142 143 Yes 2-6″ L
7450000N– Vertical 9500 120 215 Yes 2-6″ L
5330000N-(L) Vertical 10,500 142 169 Yes 2-6″ L
5330100N–(P) Vertical 10,500 142 169 Yes 2-6″ P
5330300N– Vertical 10,500 143 177 Yes 2-6″ C
5350000N– Vertical 12,500 142 198 Yes 2-6″ L
3030100N– Vertical 13,800 165 185 Yes N/A W
5370000N– Vertical 15,000 142 234 Yes N/A L
5380000N– Vertical 16,500 142 257 Yes N/A L
3030000N– Vertical 18,800 165 242 Yes N/A W
