TE-8C-MD Magnetically Coupled Pump
MARCH PUMPEN’s industrial TE-8C-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 120 gallons per minute at 30 feet, and its maximum head is 95 Feet (41PSI).
MARCH PUMPEN’s industrial TE-8C-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 120 gallons per minute at 30 feet, and its maximum head is 95 Feet (41PSI).
| Unit | 60Hz | |
|---|---|---|
| System | US | Metric |
| Max Flow | 120 GPM | 454 LPM |
| Max Head | 95 FT | 29 M |
| Power | 3 HP | 2.2 KW |
| 50Hz | |
|---|---|
| US | Metric |
| 105 GPM | 400 LPM |
| 65 FT | 20 M |
| 3 HP | 2.2 KW |
- Wet End: Polypropylene (Front Housing, Impeller), Carbon Filled Polypropylene (Rear Housing), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Teflon/Ryton/Carbon (Bushing)
- Additional Motor Options: Available in 3HP, 5HP, 5HP Explosion Proof, 3HP 575V, 5HP 575V, or Washdown
- Max Internal Pressure: 50 PSI / 3.4 bar
- Max Liquid Temperature: 190 °F / 87 °C

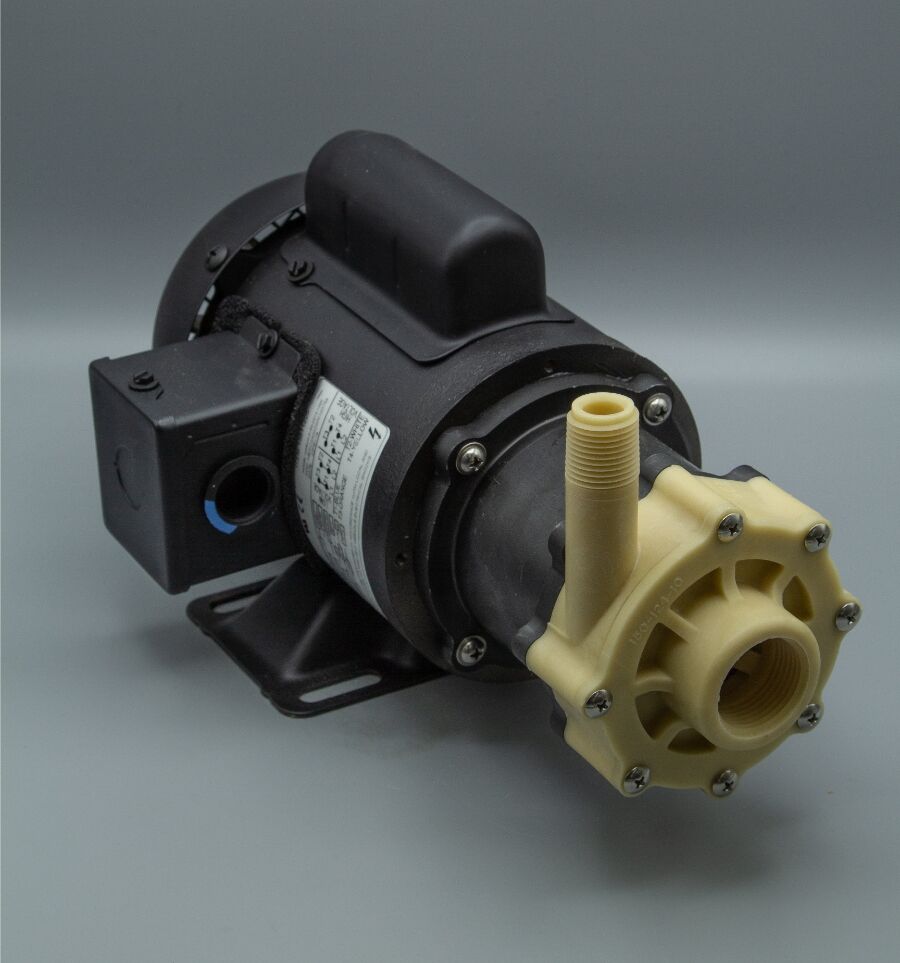

- Note: Product image may be different than actual product received.
Pump Curves & General Installation Sheets
March Safety Instructions and Preventive Maintenance Guide
MARCH PUMPEN General Installation Guide
March TE-8C-MD and TE-8K-MD Pump Manual
March TE-8C-MD, TE-8K-MD Curve 50Hz
March TE-8C-MD, TE-8K-MD Curve 60Hz
Part Numbers
| P/N | Pump Description | Modified With |
|---|---|---|
| 0157-0008-0100 | TE-8C-MD 3 Phase 3HP with Metal Motor Bracket | Standard |
| 0157-0008-0700 | TE-8C-MD 3 Phase 5HP with Metal Motor Bracket | Standard |
| 0157-0008-0300 | TE-8C-MD 3 Phase 5 HP Explosion Proof with Metal Motor Bracket | Standard |
| 0157-0102-0200 | TE-8C-MD 1 Phase 3 HP with Metal Motor Bracket | Standard |
| 0157-0137-0100 | TE-8C-MD 3 Phase 575V 3HP with Metal Motor Bracket | Standard |
| 0157-0124-0100 | TE-8C-MD 3 Phase 3HP with Plastic Motor Bracket | Standard |
| 0157-0125-0100 | TE-8C-MD 3 Phase 5HP with Plastic Motor Bracket | Standard |
| 0157-0129-0100 | TE-8C-MD 3 Phase 5HP Explosion Proof with Plastic Motor Bracket | Standard |
| The below are modified TE-8C-MD’s | ||
| 0157-0008-0112 | TE-8C-MD 3 Phase 3HP with Metal Motor Bracket | Teflon O-Ring |
| 0157-0008-0712 | TE-8C-MD 3 Phase 5HP with Metal Motor Bracket | Teflon O-Ring |
| 0157-0008-0312 | TE-8C-MD 3 Phase 5 HP Explosion Proof with Metal Motor Bracket | Teflon O-Ring |
| 0157-0008-0130 | TE-8C-MD 3 Phase 3HP with Metal Motor Bracket | Carbon Bushing |
| 0157-0008-0730 | TE-8C-MD 3 Phase 5HP with Metal Motor Bracket | Carbon Bushing |
| 0157-0008-0330 | TE-8C-MD 3 Phase 5 HP Explosion Proof with Metal Motor Bracket | Carbon Bushing |
| 0157-0008-0132 | TE-8C-MD 3 Phase 3HP with Metal Motor Bracket | Mica Teflon Bushing |
| 0157-0008-0732 | TE-8C-MD 3 Phase 5HP with Metal Motor Bracket | Mica Teflon Bushing |
| 0157-0008-0332 | TE-8C-MD 3 Phase 5 HP Explosion Proof with Metal Motor Bracket | Mica Teflon Bushing |
Parts Breakdown
| Item | Part Number | Qty | Description |
|---|---|---|---|
| 0157-0008-0100 | 1 | TE-8C-MD, 3 Phase, Complete Standard Pump | |
| 1 | 0157-0014-1000 | 8 | 1/4″-20 x 1″ Long Screw (Stainless) |
| 2 | 0157-0023-1000 | 8 | 1/4″ ID x 5/8″ OD Washer (Stainless) |
| 3 | 0157-0007-1000 | 1 | Pump Housing with 2” MPT Inlet & 1-1/2″ MPT Outlet (Polypropylene) |
| 4 | 0157-0011-1000 | 1 | 0.157” CS x 7.244” ID “O” Ring (Viton) |
| 5 | 0157-0001-1000 | 1 | Front Thrust Washer (Ceramic) |
| 6 | 0157-0002-1000 | 1 | Shaft (Ceramic) |
| 7 | 0157-0004-0200 | 1 | Impeller with Ryton Bushing (Polypropylene) |
| 8 | 0157-0009-1000 | 1 | Rear Thrust Washer (Ceramic) |
| 9 | 0157-0006-1000 | 1 | Rear Housing (Polypropylene) |
| 10 | 0157-0005-0100 | 1 | Drive Magnet |
| 11 | 0157-0008-0010 | 1 | Motor Bracket (Metal) |
| 12 | 0160-0031-1000 | 4 | 1/2″-13 x 1″ Long Screw (Stainless) |
| 13 | 0160-0032-1000 | 4 | 1/2″ ID x 1-1/4″ OD Washer (Stainless) |
| 13 | 0157-0012-1000 | 1 | Motor, TEFC, 3 Phase, 230/460V, 50/60 Hz, 3 HP |
| WEK | 0157-0085-0100 | 1 | Wet End Kit (Items: 1, 2, 3, 4, 5, 6, 7, 8, 9) |
| PLM | 0157-0095-0100 | 1 | Pump Less Motor (Items: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13) |
Options
| Item | Part Number | Qty | Description |
|---|---|---|---|
| 4 | 0157-0032-1000 | 1 | 1/8” CS x 7-1/2” ID “O” Ring (Teflon Encapsulated Viton) |
| 4 | 0157-0058-1000 | 1 | 0.157” CS x 7.244” ID “O” Ring (EPDM) |
| 5 | 0157-0043-1000 | 1 | Front Thrust Washer (Hastelloy C) |
| 6 | 0157-0045-1000 | 1 | Shaft (Hastelloy C) |
| 6 | 0157-0099-1000 | 1 | Shaft, 3 Flats (Ceramic) |
| 6 | 0157-0150-1000 | 1 | Shaft (316 Stainless) |
| 7 | 0157-0004-0500 | 1 | Impeller with Carbon Bushing (Polypropylene) |
| 7 | 0157-0004-0700 | 1 | Impeller with Mica Teflon Bushing (Polypropylene) |
| 8 | 0157-0047-1000 | 1 | Rear Thrust Washer (Hastelloy C) |
| 11 | 0157-0100-1000 | 1 | Motor Bracket (Plastic) |
| 14 | 0157-0065-1000 | 1 | Motor, TEFC, 3 Phase, 230/460V, 50/60 Hz, 5 HP |
| 0157-0042-1000 | 1 | Motor, Explosion Proof, 3 Phase (Contact March For Additional Specs) | |
| 1 | Motor, Washdown, 3 Phase (Contact March for Additional Specs) | ||
| 0750-1011-1000 | 1 | Stainless Steel Tag w/Customer’s Desired Information (Not Shown) |
Dimensional Drawings
Dimensional Drawing TE-8C-MD 3Ph 5HP
Dimensional Drawing TE-8C-MD 3Ph 3HP
Motor Information
0157-0012-1000 Motor
Conduit Box, TEFC, IP55, VFD Capable
60Hz: 3Ph 3 HP / 2.2 kW, 230/460V, 7.26/3.63AMPS, 3450 RPM (Usable at 208V)
50Hz: 3Ph 3 HP / 2.2 kW, 380V, 4.3AMPS, 2850 RPM (Usable at 190/220V)
0157-0065-1000 Motor
Conduit Box, TEFC, IP55, VFD Capable
60Hz: 3Ph 5 HP / 3.7 kW, 230/460V, 11.8/5.9AMPS, 3450 RPM (Usable at 208V)
50Hz: 3Ph 5 HP / 3.7 kW, 380V, 7.14AMPS, 2850 RPM (Usable at 190/220V)
Perfect for Applications Including
Applications for the TE-8C-MD Magnetic Drive Pump include chemical recirculation, chemical transfer, deionized water systems, scrubber systems, detergent mixers, computer cooling, waste treatment plants, and plating operations.
Great for Chemicals Including
The TE-8C-MD has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Hydrochloric Acid (Muriatic), Nitric Acid, Phosphoric Acid, Potassium Chloride, Potassium Hydroxide, Sodium Hydroxide (Caustic Soda), Sodium Chloride, Sulfuric Acid, Fresh Water, Salt Water, DI Water, and many more chemicals. The TE-8C-MD may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact MARCH PUMPEN to review your application before using the TE-8C-MD. Chemical Resistance Chart
Summary Paragraph
MARCH PUMPEN’s industrial TE-8C-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 120 gallons per minute at 30 feet, and its maximum head is 95 Feet (41PSI). The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, carbon filled Polypropylene, Viton, Teflon/Ryton/Carbon, and Ceramic. The inlet connection is 2 inch male pipe thread, and the outlet is 1-1/2 inch male pipe thread. There are two standard motors. The first is a 208/230V 60 hertz 3 horsepower totally enclosed fan cooled motor. The second is motor is a 60 hertz 208/230/460 and 50 hertz 190/220/380V 3 horsepower totally enclosed fan cooled motor. There are performance differences between the hertz options. The maximum internal pressure the pump can tolerate is 50PSI, and the maximum liquid temperature is 190 Fahrenheit or 87 Celsius. The March TE-8C-MD centrifugal magnetic drive pump is capable of handling mildly, or highly corrosive chemicals, acids, and solvents. To determine if the March TE-8C-MD is suitable for your application, please contact MARCH PUMPEN.
