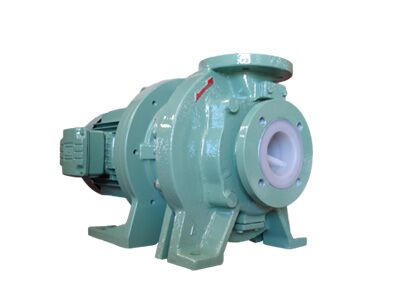

Mag-Drive Pump Series MTA

Products – MTA Series
The Magnatex®/Texel® MTA Series sealless, mag-drive pump features a transfer molded, mechanically attached PFA lining that is thicker and more uniform than common rotomolded linings. Ideal for high purity and elevated temperature applications, this PFA lining offers enhanced characteristics over conventional roto-lined pumps. MTA Series pumps conform to ANSI B73.3 standards.

Category:

Products – MTA Series
The Magnatex®/Texel® MTA Series sealless, mag-drive pump features a transfer molded, mechanically attached PFA lining that is thicker and more uniform than common rotomolded linings. Ideal for high purity and elevated temperature applications, this PFA lining offers enhanced characteristics over conventional roto-lined pumps. MTA Series pumps conform to ANSI B73.3 standards.

  • Max. Flow: 320 gpm
  • Max. Head: 285 feet
  • Temperature: 32° to 250°F
  • Max. Power: 25 hp
  • Working Pressure: 150 psig
  • Materials of Construction:
      1. PFA Lined
  • Connections: 150 LB RF Flanges
  • Bearings:
      C-PTFE

      1. G-PTFE
      1. SiC
      1. Carbon
  • Impeller: Closed
  • Speeds: 1800 and 3600 rpm
  • Magnets: Neodymium
  • Motor: “C”Face
