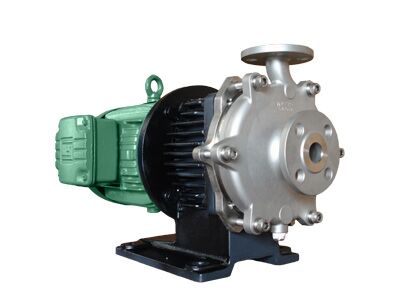

The Magnatex® MPH Series Pumps are designed for low flow, medium to high head, high-temperature applications. MPH Series pumps save valuable space, eliminate alignment problems and reduce installation costs without external cooling jackets.

Category:

Products – MPH Series
The Magnatex® MPH Series Pumps are designed for low flow, medium to high head, high-temperature applications. MPH Series pumps save valuable space, eliminate alignment problems and reduce installation costs without external cooling jackets.

The straddle-mounted double bearing design reduces shaft load and bearing wear.

  • Max. Flow: 150 gpm
  • Max. Head: 190 feet TDH
  • Temperature: -40° to 535°F
  • Max. Power: 5 hp
  • Working Pressure: 150 psig
  • Materials of Construction:
      1. 316 Stainless Steel
      1. Alloy 20
      1. Hastelloy C
  • Connections: 150 LB RF Flanges
  • Bearings: Silicon Carbide Dry-Run
  • Impeller: Enclosed
  • Speeds: 1800 and 3600 rpm
  • Magnets: Samarium Cobalt
  • Motor: Close-coupled, standard C-face
