G, & GA Series Close Coupled Centrifugal Pumps

Discharge can be located in any of four positions. Casing is close grain iron of 30,000 psi minimum tensile strength. Back pull-out design eliminates the need to disturb piping should the pump ever require service – the casing stays in the line.

Category:

FOUR POSITION CASING

Discharge can be located in any of four positions. Casing is close grain iron of 30,000 psi minimum tensile strength. Back pull-out design eliminates the need to disturb piping should the pump ever require service – the casing stays in the line.

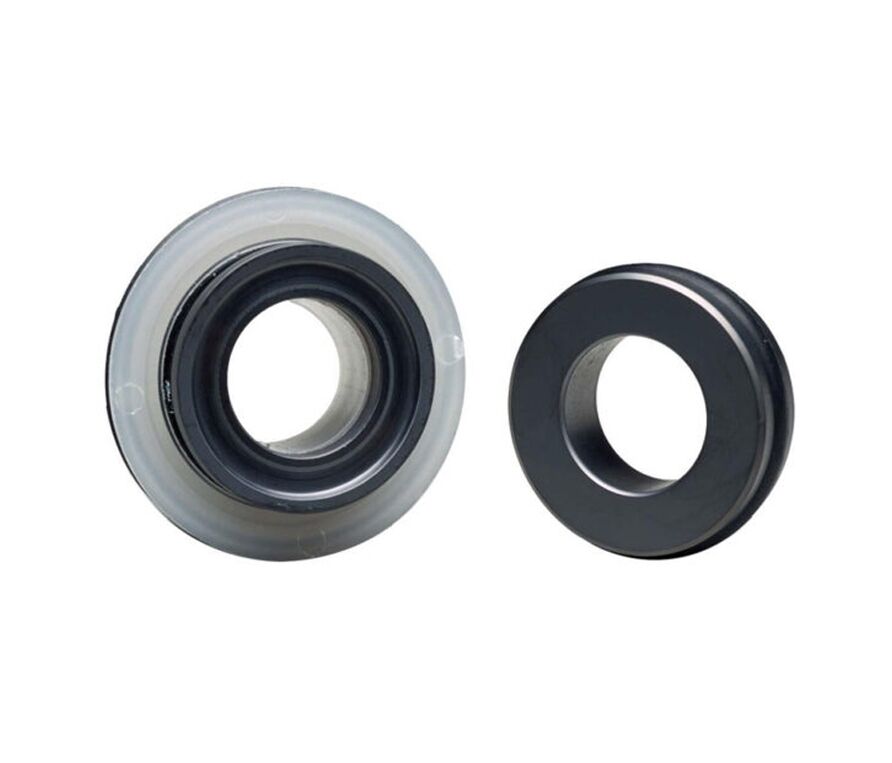

MECHANICAL SHAFT SEAL

Standard self-adjusting shaft seal for temperatures to 225°F (107°C) and pressures to 150 psi (1034 kpa). Ceramic seat and carbon seal face for long trouble-free service. Special seals are available for higher temperatures and fluids other than water.

G Series Close Coupled Centrifugal Pumps

  • Capacities to 1100 GPM
  • Heads to 380 feet
  • Cast iron/bronze fitted, all iron, and all bronze constructions.
  • Buna-N, EPT, and Viton mechanical seals.
  • Enclosed high-efficiency impellers.
  • Replaceable casing wear ring.
  • Standard NEMA electric motors with ODP, TEFC, or explosion proof enclosures.
  • Jacketed seal cavities available for product temperatures to 500°F.

 G5 Series

 G6, G7, G9 Series

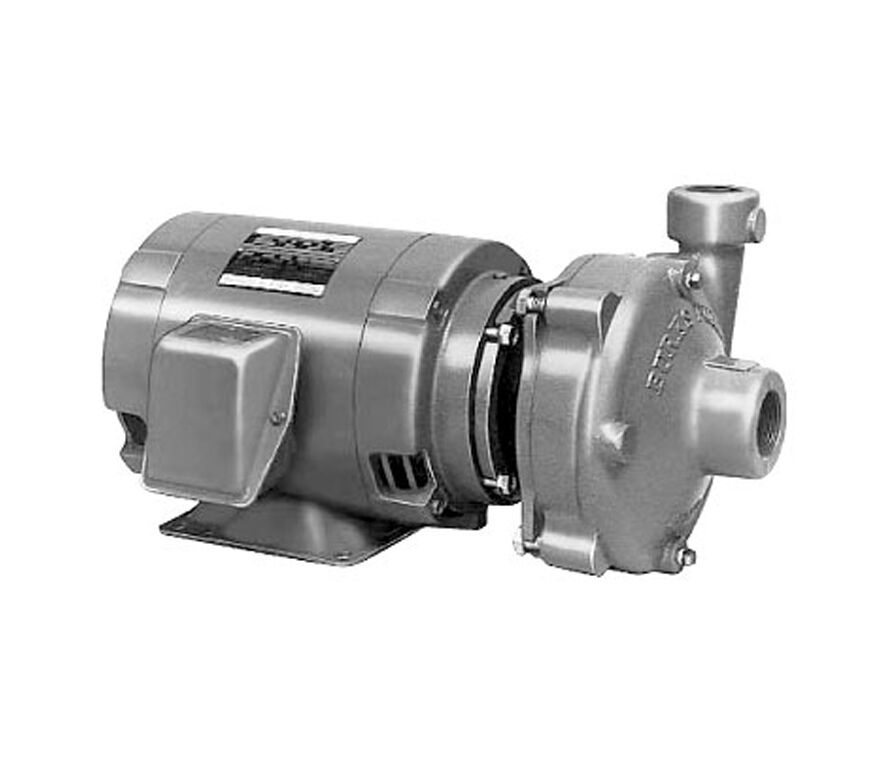

GA Series Close Coupled Centrifugal Pumps

  • Capacities to 360 GPM
  • Heads to 230 feet
  • Cast iron/bronze fitted, all iron, and all bronze constructions.
  • Buna-N, EPT, and Viton mechanical seals.
  • Enclosed high-efficiency impellers.
  • Standard NEMA electric motors with ODP, TEFC, or explosion proof enclosures.
  • Jacketed seal cavities available for product temperatures to 500°F.

 GA4 Series

 GA5 Series

 GA7 Series
