BLACKLINE MD Series Mechanical Diaphragm Metering Pumps

BLACKLINE MD Series Diaphragm Metering Pumps

The BLACKLINE Series MD is a motor driven, spring return mechanical diaphragm metering pump for precise and accurate metering control. With many standard features, the Series MD includes oil lubricated ball bearings in a die-cast aluminum housing, long life reinforced PTFE diaphragm, micrometer style stroke length adjuster and many liquid end material options to suit any application.

Nine distinct models are available, having flow capabilities to 132 GPH (500 LPH) and pressures to 150 PSI (10 BAR), with a standard turndown ratio of 10:1 or up to 100:1 with the optional VFD Vector. Metering performance is reproducible to within ± 2% of maximum

Optional Features

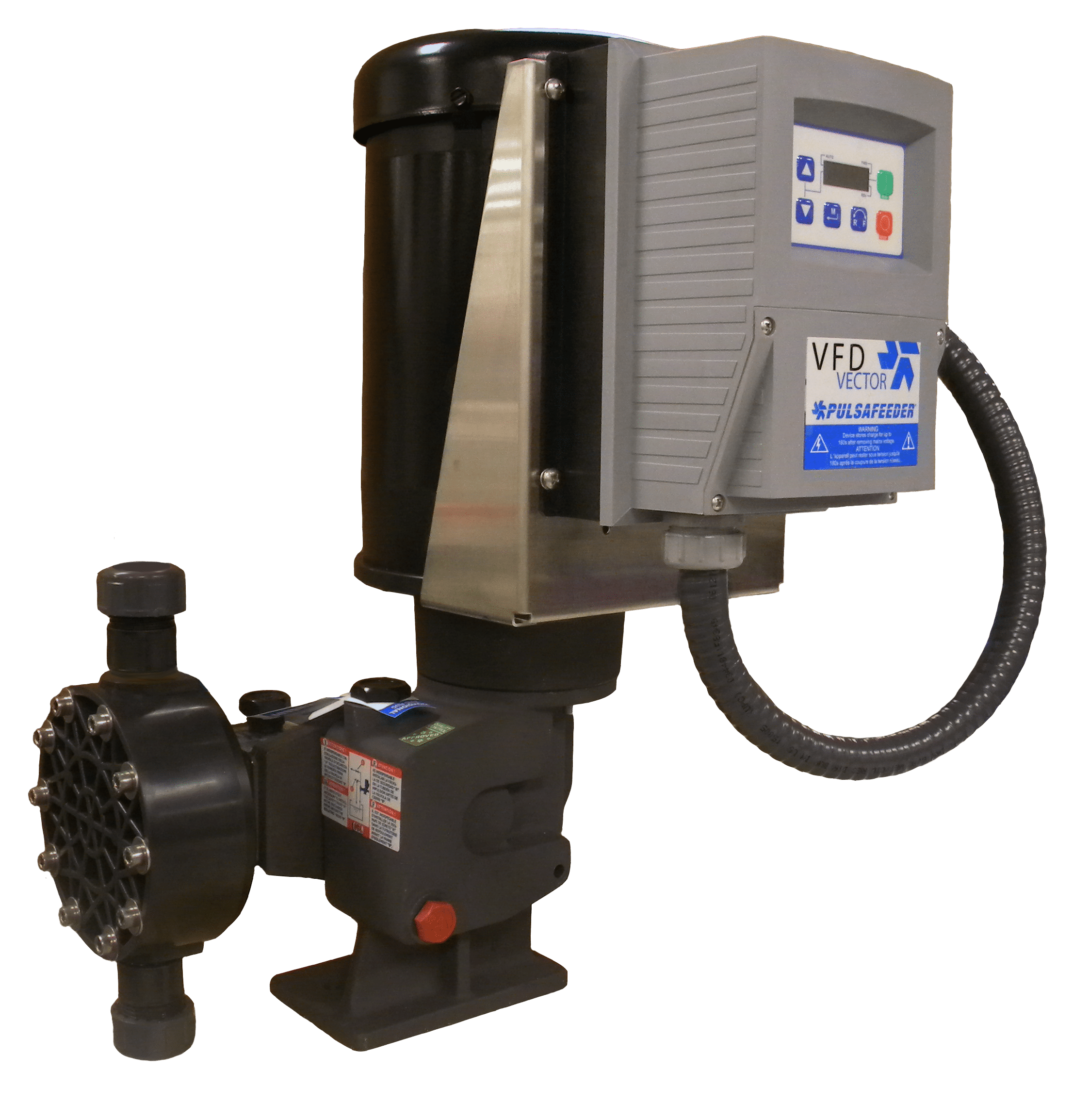

Variable Frequency Drive for Automatic Control.
Fully Scalable 4-20mA, 0-10VDC signals.
NEMA 4X Enclosure.
ATEX Group II, Category 3 – Zone 2/22 for non-flammable liquids with proper motor selection.

Specifications

Pump Head Materials	PVDF, GFPPL, 316SS
Turndown Ratio	10:1 or 100:1 with the optional VFD Vector Drive
Wetend	PVDF, GFPPL, 316SS
Seat O-Rings Available	PTFE, PVC, 316SS, Incoloy 825
Diaphragms	Rugged double-sided PTFE faced with drive side support ring
Connections	NPT, BSPT
Ball Checks Available	Pyrex, 316SS, Hatelloy C-276
Accuracy and Repeatability	Reproducibility of +/-2% of max capacity
Product Options	VFD Vector
Accessories	Back Pressure Valves KOP Kits Pulsation Dampeners Y Strainers Pressure Relief Valves Y-Strainers

blackline_metering_pumps_product_list

blackline_vfd_addendum

blackline_series_md_iom

blackline_series_md_tech_sheet

Liquid End Materials – GFPPL, 316 SS & PVDF.
Rugged double-sided PTFE faced, long life diaphragm.
Oil lubricated ball bearings in a die-cast aluminum housing.
Manual micrometer style stroke adjustment; 10:1 turndown or up to 100:1 with the optional VFD Vector.
Standard NEMA 56C or IEC71 motor frames available.
