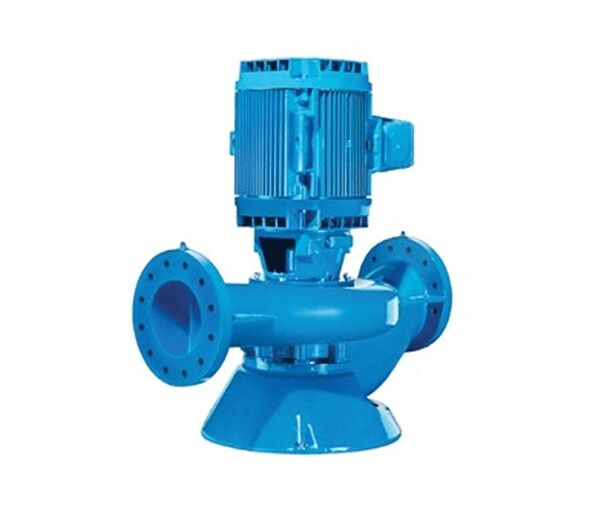

VLS General Service Pumps

PACO type VLS Vertical In-Line Pumps are available in a wide selection of metallurgical and mechanical options to meet specific pumping requirements.

Category:

PACO type VLS Vertical In-Line Pumps are available in a wide selection of metallurgical and mechanical options to meet specific pumping requirements.

Suction and Discharge connections are the same size to simplify piping. The type VLS design incorporates a short shaft with minimum overhang reducing shaft deflection. Back pull out design allows rotating assembly to be removed without disturbing the volute or piping for ease of maintenance and service. PACO In-Line Pumps with discharge sizes 3 inch and larger feature a double volute design to reduce radial thrust and prolong bearing life.

PACO type VLS Vertical In-Line Pumps eliminate costly installation steps. They require 1/3 the space of a conventional pump installation and drastically reduce the cost of layout foundation and piping.

  • Sizes to 10″

  • Flows to 4050 GPM

  • Heads to 440 ft.

  • Horsepower to 125 HP
