LUMINOR Environmental

Environmental stresses on our world’s ecosystems continue to come under pressures by global expansion and as a result our water supply’s quality and availability continue to decline. As a manufacturer, LUMINOR Environmental is committed to providing environmentally friendly solutions to aid our global customer base in their quest for safe, clean water.

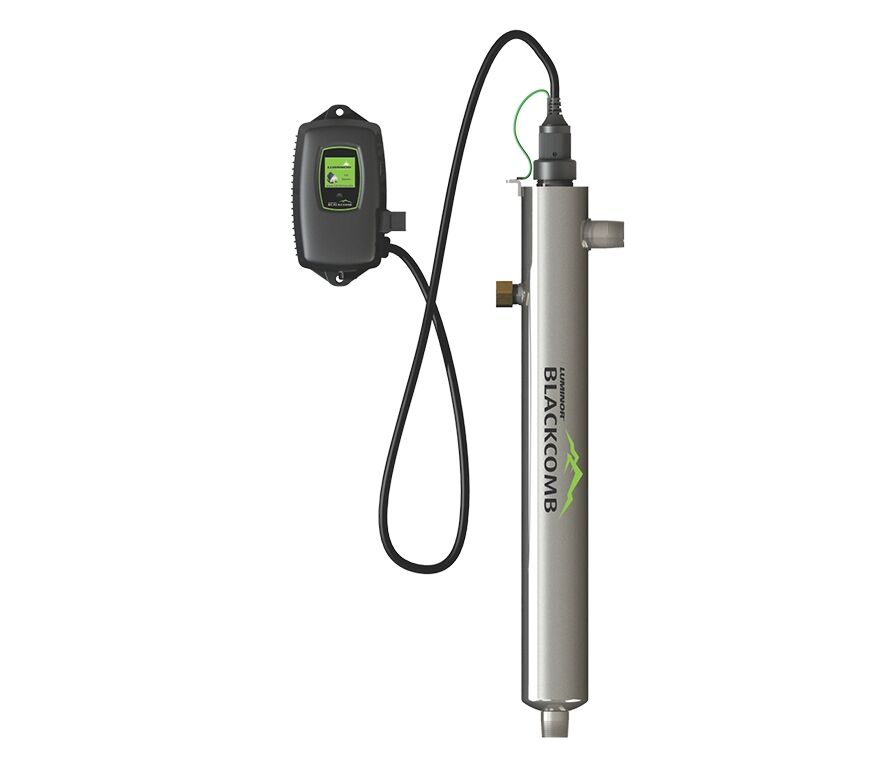

LUMINOR’s BLACKCOMB series of residential UV systems offer the homeowner three levels of protection, all with the same level of disinfection.

Category:

Environmental stresses on our world’s ecosystems continue to come under pressures by global expansion and as a result our water supply’s quality and availability continue to decline. As a manufacturer, LUMINOR Environmental is committed to providing environmentally friendly solutions to aid our global customer base in their quest for safe, clean water.

LUMINOR’s BLACKCOMB series of residential UV systems offer the homeowner three levels of protection, all with the same level of disinfection.

System features Normal Flow
Up to 80 lpm (20 gpm)
High Flow
Up to 160 lpm (40gpm)
  No-frills safe drinking water
BLACKCOMB 4.0
BLACKCOMB-HO4.0

State-of-the-art monitoring of lamp life, system diagnostics and potential fault codes all on a colour interface with a “future-proof” expandability port for product upgrades and
options

BLACKCOMB 5.0
BLACKCOMB-HO5.0
Continuous UV monitoring in addition to lamp status monitoring, system diagnostics and potential fault codes all
on a colour interface with a “future-proof” expandability port
BLACKCOMB 6.0
BLACKCOMB-HO6.0

RAINIER systems are designed for multiple applications:

Disinfection Apartment buildings, senior facilities, health care facilities, campgrounds, restaurants and other similar applications 132 to 530 lpm
(35 to 175 gpm)
Hot Water Designed for the reduction of legionella. Can be used in recirculation loops, showers, cooling towers, etc. 83 to 360 lpm
(22 to 95 gpm)
Low UVT For applications where water quality may approach 50%, low UVT systems increase the operational performance and reduce nuisance alarms. 53 to 193 lpm
(14 to 51 gpm)
TOC for the reduction of TOC (total organic carbon) using UV lamps at 185 nm output 26 to 132 lpm
(7 to 35 gpm)

Each system comes in 2 models:

  • RAINIER5.0: Control panel with LED display for remaining lamp life, total running hours, audible & visual lamp failure, remote-on and solenoid connectors
  • RAINIER6.0: Continuous UV monitoring in addition to lamp status monitoring, 254nm Teflon™ based UV sensor with 4-20mA output and solenoid connectors

The entire RAINIER product line includes the following features:

  • 316L stainless steel, polished reactors, designed & manufactured to ASME pressure vessel standards
  • modular electronics with LED display for remaining lamp life, total running hours, audible & visual lamp failure, remote-on and solenoid ready
  • constant current electronic ballasts in a splash-proof (IP-54) case with audible and visual lamp failure indicators
  • user friendly bayonet style lamp connector (quick ¼ turn removal with no extra tools needed)
  • reliable, industry proven low pressure amalgam (LP-AM) coated UV lamps with ceramic bases for durability, 12,000 hour lamp life
  • 10 year limited warranty on UV reactors
